Resilient Wedge os&Y Gate valve-Flanged End

Model: Z41-300

Categories:

Gate Valve

Compliance Credentials: Strictly certified to UL 260 and FM standards for high-hazard critical infrastructure

TEL：

0086-18600252968

MESSAGE

Resilient Wedge os&Y Gate valve-Flanged End

Technical Features

Nominal Pressure: 300PSI

Flange Standard: ASME/ANSI B 16.1 Class 125 orASME/ANSIB 16.42 Class 150 or BS EN 1092-2PN 16 orGB/T9113.1
Sizes:   212",3",4",5",6",8",10",12"
Face to Face Standard: ASME B 16.10
Approvals: UL, CUL,FM,NSF/ANSI61& NSF/ANSI372,CCC
Maximum Working   Pressure:300PSI(Maximum    Testing   Pressure:600 PSI)   conforms   to   UL262,ULC/ORDC262-92,FM1120/1130
Maximum Working   Temperature: 80°℃/176°F
Coating   Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
NPT plug on body with 2 operating nuts
Certified lead-free by NSF/ANSI 61 &  NSF/ANSI 372 is available

Butterfly Valve with Lever- Grooved End

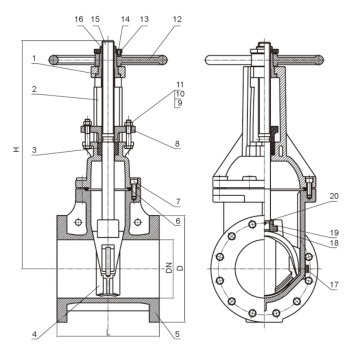

Valve Material List

NO.	Name	Material
1	Gasket	Stainless Steel 304 or C95400
2	Bonnet	Ductile Iron
3	packing	Graphite
4	Disc	Ductile lron +EPDM
5	Body	Ductile Iron
6	Sealing Ring	EPDM
7	Bolt	Stainless Steel 304 or Steel 1045
8	Gland	Ductile Iron
9	Nut	Stainless Steel 304 or Steel 1045
10	Flat Washer	Stainless Steel 304 or Steel 1045
11	Bolt	Stainless Steel 304 or Steel 1045
12	Handwheel	Ductile Iron
13	Lock Nut	C95400
14	Locating Screw	Stainless Steel 304 or Steel 1045
15	Stem	Stainless Steel 304 or C95400
16	Stem Nut	C95400
17	Plug	C95400
18	Lifting Nut	CF8 or C95400
19	Pin	Stainless Steel 304
20	Sealing Ring	EPDM
