Resilient Wedge Os&Y Gate valve-Flangedx Grooved End
Categories:
Compliance Credentials: Strictly certified to UL 260 and FM standards for high-hazard critical infrastructure
TEL：
Resilient Wedge Os&Y Gate valve-Flangedx Grooved End
Technical Features
Nominal Pressure: 300PSl
Conforms: ANSI 1 AWWA C515 Standard
Face to Face Standard : ASME B16.10
Sizes: 2½", 3", 4", 5", 6", 8", 10", 12"
Flange Standard: ASME / ANSI B16.1 Class 125 or ASME / ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB/ T9113.1
Groove Standard: ANSI / AWWA C606 or Metric
Approvals: FM, UL, CUL, NSF /ANSI61 & NSFIANSI 372
Maximum Working Pressure: 300PSI (Maximum Testing Pressure: 600 PSI) conforms to UL262, ULC / ORD C262-92 , FM 1120/ 1130
Maximum Working Temperature: 80°C/ 176°F
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
NPT plug on body with 2 operating nuts
Certified lead-free by NSF / ANSI 61 & NSF / ANSI 372 is available
Valve Material List
|
NO. |
Name |
Material |
|
1 |
Gasket |
Stainless Steel 304 or C95400 |
|
2 |
Bonnet |
Ductile Iron |
|
3 |
packing |
Graphite |
|
4 |
Disc |
Ductile Iron +EPDM |
|
5 |
Body |
Ductile Iron |
|
6 |
Sealing Ring |
EPDM |
|
7 |
Bolt |
Stainless Steel 304 or Steel 1045 |
|
8 |
Gland |
Ductile Iron |
|
9 |
Nut |
Stainless Steel304 or Steel1045 |
|
10 |
Flat Washer |
Stainless Steel 304 or Steel 1045 |
|
11 |
Bolt |
Stainless Steel 304 or Steel 1045 |
|
12 |
Handwheel |
Ductile Tron |
|
13 |
Lock Nut |
C95400 |
|
14 |
Locating Screw |
Stainless Steel 304 or Steel 1045 |
|
15 |
Stem |
Stainless Steel 304 or C95400 |
|
16 |
Stem Nut |
C95400 |
|
17 |
Plug |
C95400 |
|
18 |
Lifting Nut |
CF8 or C95400 |
|
19 |
Pin |
Stainless Steel 304 |
|
20 |
Sealing Ring |
EPDM |

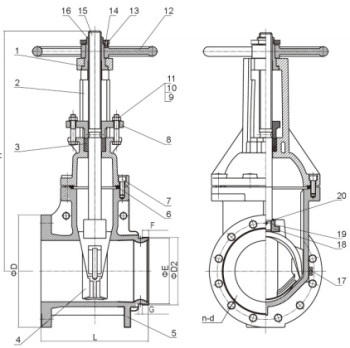

Dimensions
|
Size |
DN |
L |
F |
D |
F |
G |
H |
|
2½” |
65 |
190 |
15.9 |
73 |
69.1 |
7.9 |
370 |
|
76.1 |
72.3 |
||||||
|
3” |
80 |
203 |
15.9 |
88.9 |
84.9 |
7.9 |
420 |
|
4” |
100 |
229 |
15.9 |
114.3 |
110.1 |
9.5 |
447 |
|
5" |
125 |
254 |
15.9 |
139.7 |
135.5 |
9.5 |
547 |
|
141.3 |
137 |
||||||
|
6” |
150 |
267 |
15.9 |
165.1 |
160.8 |
9.5 |
607 |
|
168.3 |
163.9 |
||||||
|
8" |
200 |
292 |
19 |
216.3 |
211.6 |
11.1 |
754 |
|
219.1 |
214.3 |
||||||
|
10” |
250 |
330 |
19 |
273 |
268.3 |
127 |
890 |
|
12” |
300 |
356 |
19 |
323.9 |
318.3 |
12.7 |
1031 |
