Grooved Butterfly Valve with handlever
Categories:
Compliance Credentials: Strictly certified to UL 260 and FM standards for high-hazard critical infrastructure
TEL：
Grooved Butterfly Valve with handlever
Technical Features
Flange Standard:ANSI 125/150,DIN2501 PN10/16
Connection:Wafer End
Sizes:2",2V2",3",4",5",6”,8",10",12"
Maximum Working Pressure:300 PSI (Maximum Testing Pressure:600 PSI)conforms to UL1091 &ULC/ORD-C1091 &FM 1112 Maximum Working Temperature:80°C/176°F
Application:Indoor &Outdoor Use,Fire inflow water,drainpipe,high-rising building firefighting system,industrial factory building fireprotection system
Coating Details:Epoxy coated interior and exterior by Electrostatic Spray or coating upon request
Disc:Ductile lron EPDM Rubber Encapsulated
Top Flange Standard:ISO 5211
Certified lead-free by NSF/ANSI 61 &NSF/ANSI 372 is available

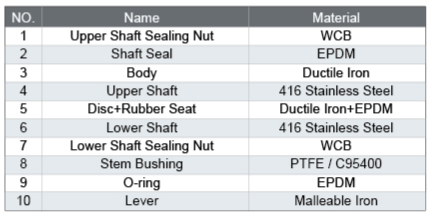

Valve Material List

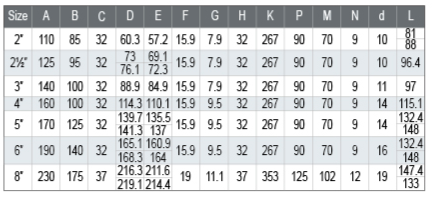

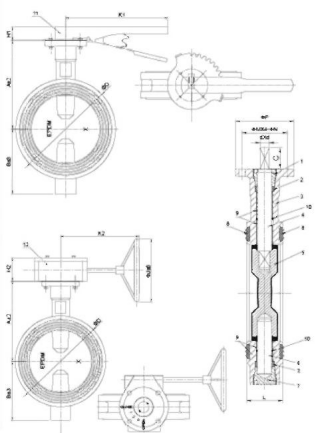

Dimensions
