Grooved Butterfly Valve with gear box
Technical Features
Conforms:ANSI/AWWA C606 or Metric Standard Clear
Waterway design
Connection:Grooved End
Sizes:2",2V2",3",4",5",6",8",10",12"
Maximum Working Pressure:300 PSI (Maximum Testing Pressure:600 PSI)conforms to UL1091&ULC/ORD-C1091&FM 1112Maximum Working Temperature:80°C/176°F
Application:Indoor &Outdoor Use,Fire inflow water,drain pipe,high-rising building fre fighting system,industrial factory building fire protection system
Coating Details:Epoxy coated interior and exterior by Electrostatic Spray or coating upon request
Disc:Ductile Iron EPDM Rubber Encapsulated
Top Flange Standard:ISO 5211
Certified lead-free by NSF/ANSI 61&NSF/ANSI 372 is available

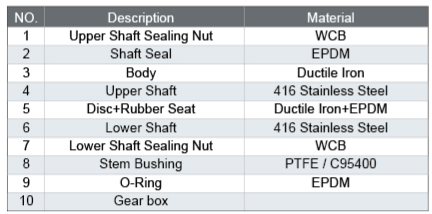

Valve Material List

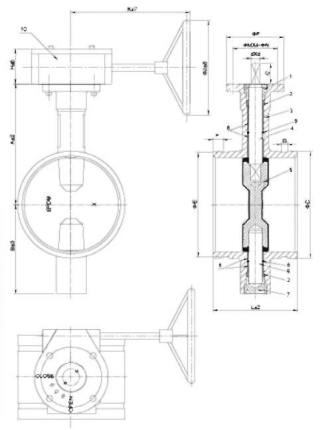

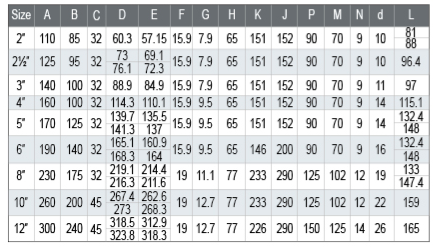

Dimensions
