Butterfly Valve with Gearbox-Grooved End
Technical Features
Conforms: ANSI/AW A C606 or Metric Standard Clear
Waterway design
Connection:Grooved End
Sizes: 2",2½",3",4",5",6",8",10",12"
Maximum Working Pressure: 300 PSI(Maximum Testing Pressure:600 PSI) conforms to UL1091& ULC/ORD-C1091&FM1112
Maximum Working Temperature:80°℃/176°F
Application: Indoor & Outdoor Use,Fire inflow water,drain pipe,high-rising building fire fighting system,industrial factory building fire protection system
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or coating upon reauest
Disc: DuctilelronEPDM Rubber Encapsulated
Top Flange Standard: ISO 5211
Certified lead-free by NSF/ANSI61&NSF/ANSI372is available
Valve Material List
NO. |
Description |
Material |
1 |
Upper Shaft Sealing Nut |
WCB |
2 |
Shaft Seal |
EPDM |
3 |
Body |
Ductile Iron |
4 |
Upper Shaft |
416 Stainless Steel |
5 |
Disc+Rubber Seat |
Ductile lron+EPDM |
6 |
Lower Shaft |
416 Stainless Steel |
7 |
Lower Shaft Sealing Nut |
WCB |
8 |
Stem Bushing |
PTFE/C95400 |
9 |
O-Ring |
EPDM |
10 |
Gear box |
|

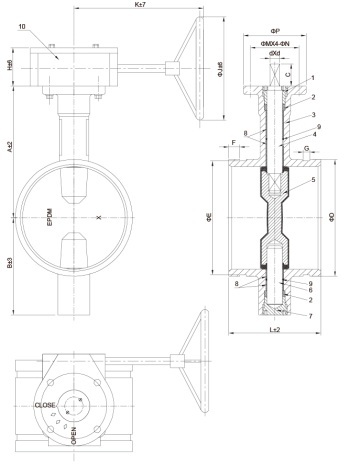

Dimensions
Size |
A |
B |
C |
D |
E |
F |
G |
H |
K |
J |
P |
M |
N |
D |
L |
2" |
110 |
85 |
32 |
60.3 |
57.15 |
15.9 |
7.9 |
65 |
151 |
152 |
90 |
70 |
9 |
10 |
81 |
88 | |||||||||||||||
2½" |
125 |
95 |
32 |
73 | 69.1 |
15.9 |
7.9 |
65 |
151 |
152 |
90 |
70 |
9 |
10 |
96.4 |
76.1 |
72.3 |
||||||||||||||
3” |
140 |
100 |
32 |
88.9 |
84.9 |
15.9 |
7.9 |
65 |
151 |
152 |
90 |
70 |
9 |
11 |
97 |
4" |
160 |
100 |
32 |
114.3 |
110.1 |
15.9 |
9.5 |
65 |
151 |
152 |
90 |
70 |
9 |
14 |
115.1 |
5" |
170 |
125 |
32 |
139.7 |
135.5 |
15.9 |
9.5 |
65 |
151 |
152 |
90 |
70 |
9 |
14 |
132.4 |
141.3 |
137 |
148 |
|||||||||||||
6" |
190 |
140 |
32 |
165.1 |
160.9 |
15.9 |
9.5 |
65 |
146 |
200 |
90 |
70 |
9 |
16 |
132.4 |
168.3 |
164 |
148 |
|||||||||||||
8" |
230 |
175 |
32 |
219.1 |
214.4 |
19 |
11.1 |
77 |
233 |
290 |
125 |
102 |
12 |
19 |
133 |
216.3 |
211.6 |
147.4 |
|||||||||||||
10” |
260 |
200 |
45 |
267.4 |
262.6 |
19 |
12.7 |
77 |
233 |
290 |
125 |
102 |
12 |
22 |
159 |
273 |
268.3 |
||||||||||||||
12 |
300 |
240 |
45 |
318.5 |
312.9 |
19 |
12.7 |
77 |
226 |
290 |
150 |
125 |
14 |
26 |
165 |
323.8 |
318.3 |
