Butterfly Valve c/w Signal Gearbox- Grooved End
Technical Features
Conforms: ANSI/AW A C606 or Metric Standard Clear Waterway design
Connection: Grooved End
Sizes: 2",212",3",4",5",6",8",10",12"
Approvals: UL, CUL,FM,NSF/ANSI61&NSF/ANSI372
Maximum Working Pressure: 300 PSI(Maximum Testing Pressure: 600 PSI)conforms to UL1091&ULC/ORD-C1091& FM 1112
Maximum Working Temperature: 80°℃/176°F
Application: Indoor & Outdoor Use,Fire inflow water,drain pipe, high-rising building fire fighting system,industrial factory building fire protection system
Coating Details: Epoxy coated interiorand exterior by
Electrostatic Spray or coating upon request
Disc: Ductile Iron EPDM Rubber Encapsulated
Top Flange Standard: ISO 5211
Certified lead-freeby NSF/ANS161& NSF/ANSI372 isavailable

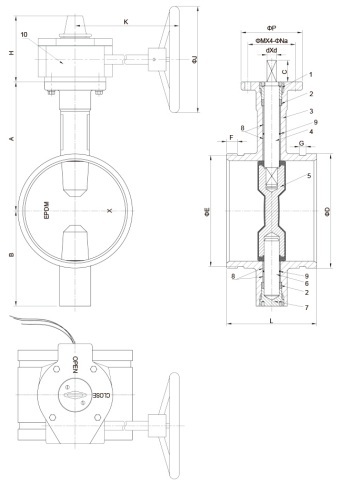

Valve Material List
NO. |
Description |
Material |
1 |
Upper Shaft Sealing Nut |
WCB |
2 |
Shaft Seal |
EPDM |
3 |
Body |
Ductile Iron |
4 |
Upper Shaft |
416 Stainless Steel |
5 |
Disc+Rubber Seat |
Ductile Iron+EPDM |
6 |
Lower Shaft |
416 Stainless Steel |
7 |
Lower Shaft Sealing Nut |
WCB |
8 |
Stem Bushing |
PTFE/C95400 |
9 |
O-Ring |
EPDM |
10 |
Gearbox |
|
Dimensions
Size |
A |
B |
C |
D |
E |
F |
G |
H |
K |
J |
P |
M |
N |
d |
L |
|
2" |
110 |
85 |
32 |
60.3 |
57.15 |
15.9 |
7.9 |
111 |
153 |
218 |
152 |
90 |
70 |
9 |
10 |
81 |
88 | ||||||||||||||||
2½" |
125 |
95 |
32 |
73 |
69.1 |
15.9 |
7.9 |
111 |
153 |
218 |
152 |
90 |
70 |
9 |
10 |
96.4 |
76.1 |
72.3 |
|||||||||||||||
3” |
140 |
100 |
32 |
88.9 |
84.9 |
15.9 |
7.9 |
111 |
153 |
218 |
152 |
90 |
70 |
9 |
11 |
97 |
4” |
160 |
100 |
32 |
114.3 |
110.1 |
15.9 |
9.5 |
111 |
153 |
218 |
152 |
90 |
70 |
9 |
14 |
115.1 |
5” |
170 |
125 |
32 |
139.7 |
135.5 |
15.9 |
9.5 |
111 |
153 |
218 |
152 |
90 |
70 |
9 |
14 |
132.4 |
141.3 | 137 | 148 | ||||||||||||||
6" |
190 |
140 |
32 |
165.1 |
160.9 |
15.9 |
9.5 |
111 |
153 |
218 |
200 |
90 |
70 |
9 |
16 |
132.4 |
168.3 |
164 |
148 |
||||||||||||||
8" |
230 |
175 |
32 |
219.1 |
214.4 |
19 |
11.1 |
126 |
210 |
232 |
300 |
125 |
102 |
12 |
19 |
133 |
216.3 | 211.6 | 147.4 | ||||||||||||||
10" |
260 |
200 |
45 |
267.4 |
262.6 |
19 |
12.7 |
126 |
210 |
232 |
300 |
125 |
102 |
12 |
24 |
159 |
273 |
268.3 |
|||||||||||||||
12” |
300 |
240 |
45 |
318.5 |
312.9 |
19 |
12.7 |
161 |
249 |
350 |
150 |
125 |
14 |
26 |
165 |
|
323.8 |
318.3 |

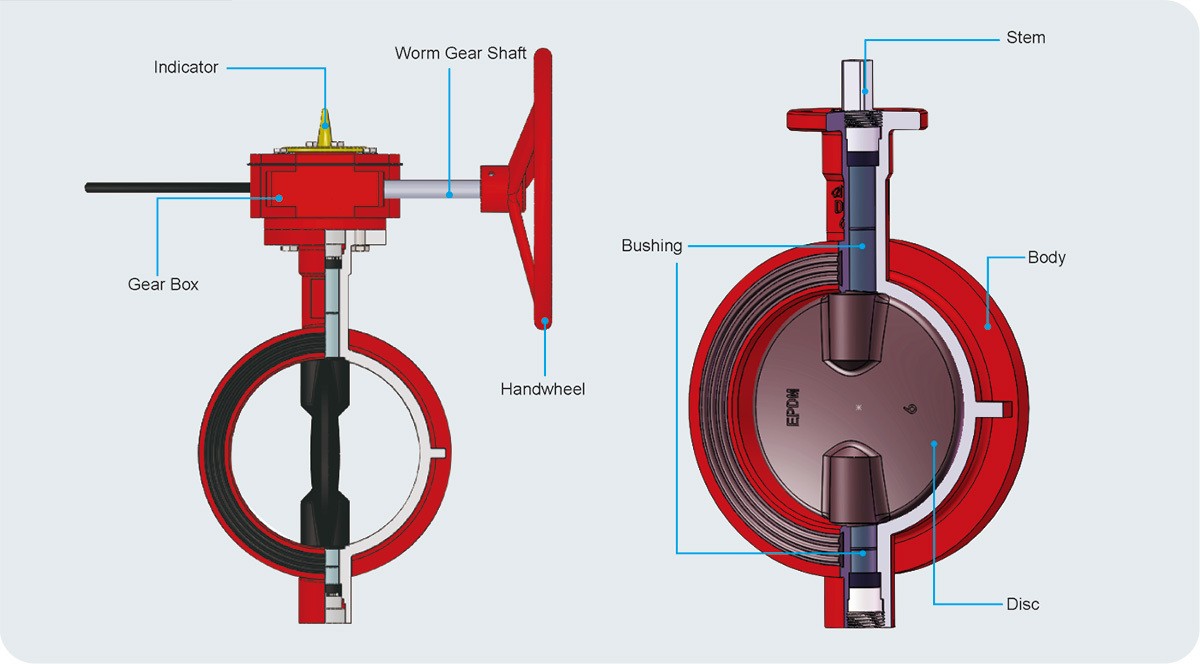

3D Pictures

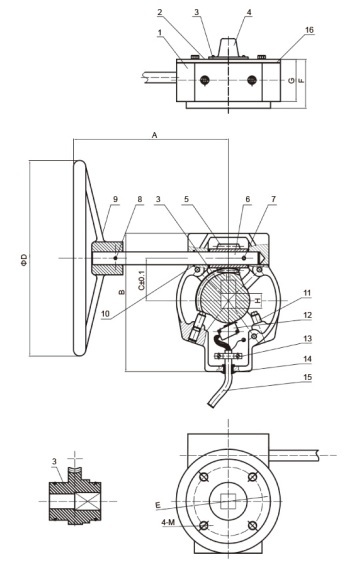

Gearbox Material List
NO. |
Description |
Material |
1 |
Gear Body |
Ductile Iron |
2 |
Gear Cover |
Ductile Iron |
3 |
Worm Wheel |
Ductile Iron |
4 |
Indicator |
Ductile Iron |
5 |
Worm |
Steel |
6 |
Handwheel Shaft |
Steel |
7 |
Din |
416 Stainless Steel |
8 |
Pin |
416 Stainless Steel |
9 |
Handwheel |
Ductile lron |
10 |
O-Ring |
EPDM |
11 |
Set Screw |
Steel |
12 |
Signal Switch |
Switch Assembly |
13 |
Clip |
Nvlon |
14 |
Sealing Ring |
EPDM |
15 |
Wire |
Wire |
16 |
Gasket |
EPDM |
Dimensions
Gearbox |
Valve |
A |
B |
C |
D |
F |
F |
G |
H |
M |
|
24:1 |
2"-2½" |
153 |
218 |
164 |
45 |
152 |
70 |
65 |
58 |
10 |
M8 |
24:1 |
3" |
153 |
218 |
164 |
45 |
152 |
70 |
65 |
58 |
11 |
M8 |
24:1 |
4"-5" |
153 |
218 |
164 |
45 |
152 |
70 |
65 |
58 |
14 |
M8 |
24:1 |
6" |
153 |
218 |
164 |
45 |
200 |
70 |
65 |
58 |
16 |
M8 |
30:1 |
8" |
210 |
232 |
205 |
63 |
300 |
102 |
79 |
67 |
19 |
M10 |
30:1 |
10" |
210 |
232 |
205 |
63 |
300 |
102 |
79 |
67 |
22 |
M10 |
80:1 |
12" |
249 |
284 |
120 |
350 |
125 |
118 |
110 |
24 |
M12 |
