Y-strainer

 Technical Features

Size: DN15-DN6O0/ 0.5"-24'
Working Pressure: 200PSI/ PN10/PN16Test Standard: API598
Flange Standard:ASME/ANSI B16.1 Class 125 or 16.42Class 150 or BS EN 1092-2 PN16
Face to Face Standard: ASME B16.10 or BS EN558-1Working Temperature: -10 to 80℃



11

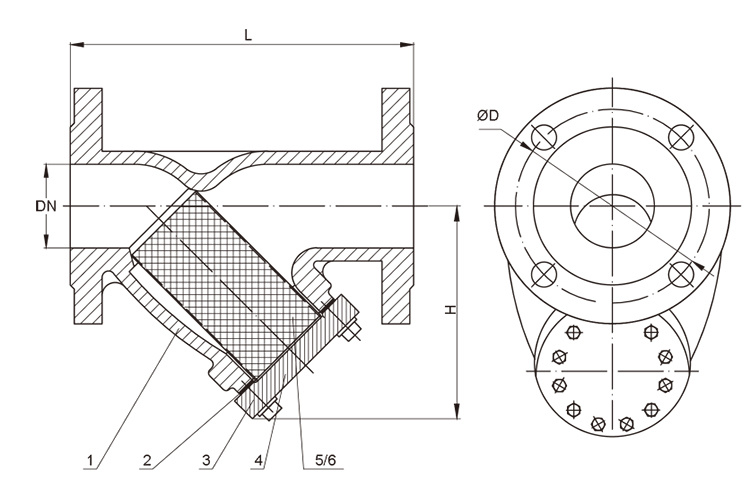

 Valve Material List

No.

Part Name

Material

1

Body

Cast Iron /Ductile Iron

2

Body Gasket

Graphite or PTFE

3

Cover

Cast Iron /Ductile Iron

4

Bolts

Steel

5

Plug

Stainless Steel

6

Screen

Stainless Steel

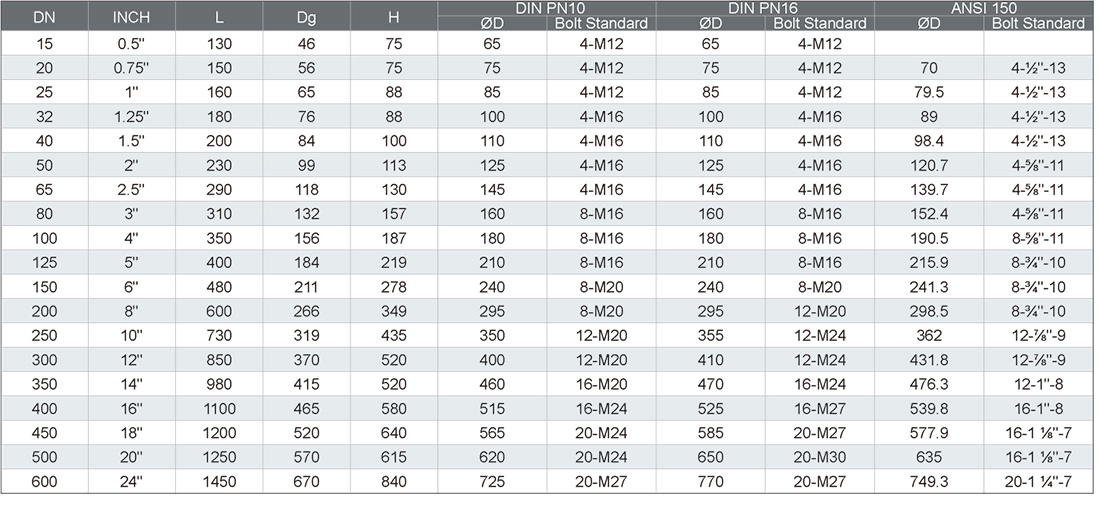

 Dimensions

11
