Single Ball Flexible Rubber Joint

RJ-01

Categories:

Flexible Rubber Joint

Compliance Credentials: Strictly certified to UL 260 and FM standards for high-hazard critical infrastructure

TEL：

0086-18600252968

MESSAGE

Single Ball Flexible Rubber Joint

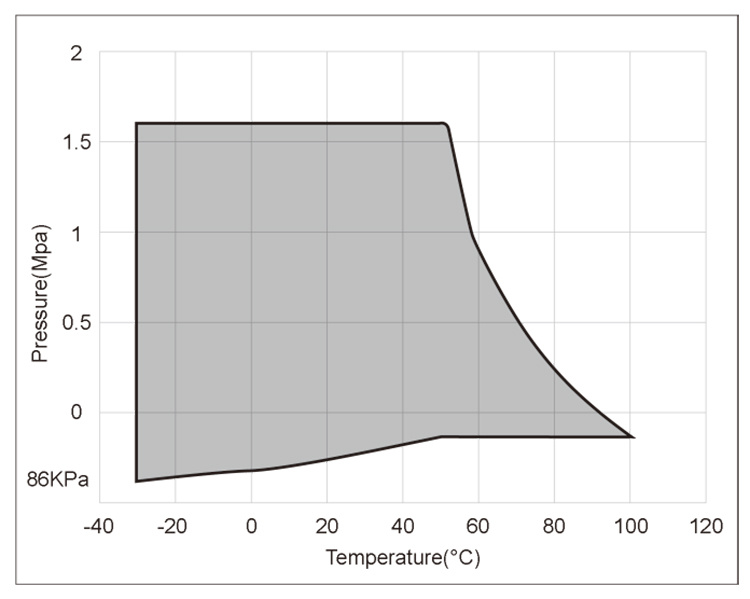

Technical Features

Size: DN5O-DN600/2"-24"
Working Pressure:200PSI/PN10/PN16
Flange Standard:ASME/ANSI B16.1Class 125 or 16.42Class 150 or BS EN 1092-2 PN16
Face to Face Standard: ASME B16.10 or BS EN558-1Working Temperature: 0 to 80℃

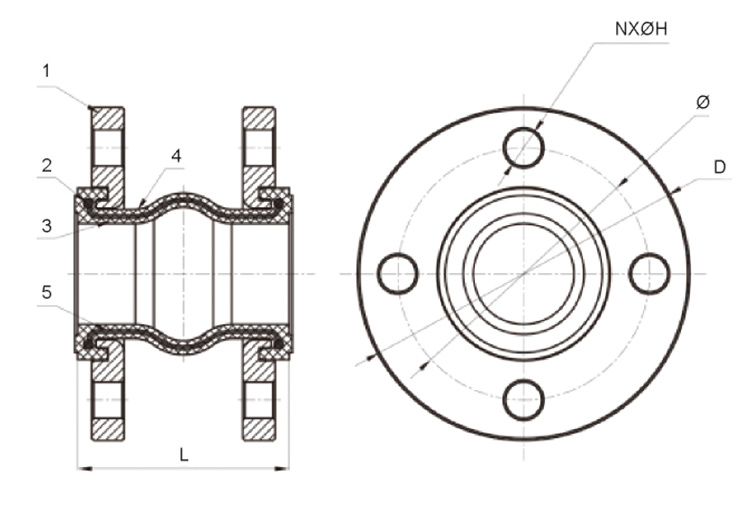

Valve Material List

Part No	Part	Standard Specification
1	Flange	Galvanized Carbon Steel
2	Reinforcing Rinc	Carbon Steel
3	Rubber (Inner)	EPDM
4	Dubber (Outer)	EPDM
5	Peipforcing Fabri	Nylon Fabric

Note:For special material request other than standard specfication, please indicate clearly on the inquiry or order list.

Dimensions

OM	INCH	Neutral Length(mm)				Axial(mm)		TransverseMovement(mm	AngularDeflection Deg.
OM	INCH	L	D	∅	N-∅H	Elongation	Comperssion	TransverseMovement(mm	AngularDeflection Deg.
32	25"	95	140	100	4X18	6	10	10	25
40	1.5"	95	150	110	4X18	6	10	10	25
50	2"	105	165	125	4X18	6	10	10	25
65	2.5"	115	185	145	8X18	8	15	12	25
80	3"	135	200	160	8X18	8	15	12	25
100	4"	150	220	180	8X18	12	20	16	15
125	5"	165	250	210	8X18	12	20	16	15
150	6"	180	285	240	8X22	12	20	16	15
200	8”	210	340	295	2X22	12	20	16	15
250	10"	230	405	355	2X26	14	30	25	8
300	12"	230	460	410	12X26	14	30	25	8
350	14"	265	520	470	2X26	14	30	25	8
400	16"	265	580	525	6X30	14	30	25	8
450	18"	265	640	585	20X30	14	30	25	8
500	20"	265	715	650	20X33	14	30	25	8
600	24"	265	840	770	20X36	14	30	25	8
