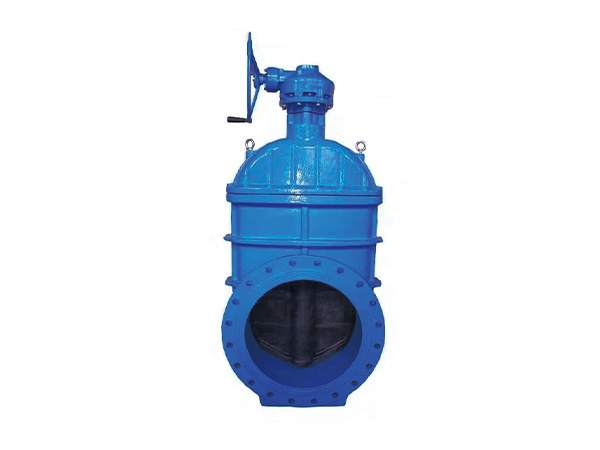

NRS Gate Valves

GV-02

Categories:

Gate Valve

Compliance Credentials: Strictly certified to UL 260 and FM standards for high-hazard critical infrastructure

NRS Gate Valves

TEL：

0086-18600252968

MESSAGE

NRS Gate Valves

Technical Features

Size: DN50-DN1000 / 2"-40"
Working pressure: 200PSI / PN10/ PN16
Test Standard: API598
Flange Standard: ASME / ANSI B16.1 Class 125 or 16.42 Class 150 or BS EN 1092-2 PN16.
Mounting Plate Standard: ISO 5211
Face to Face Standard: ASME B16.10 or BS EN558-1
Working Temperature: -10 to 80°C

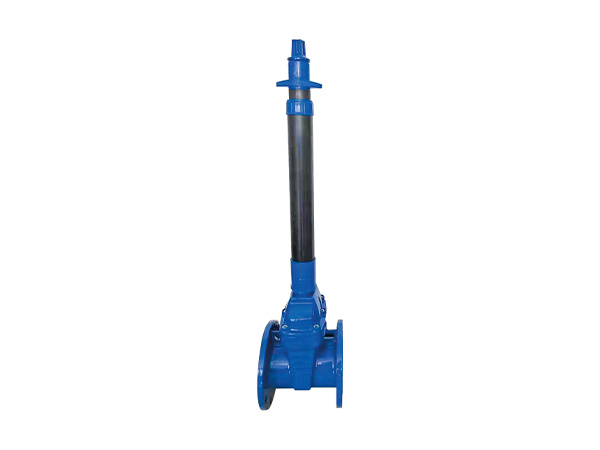

Operation: Hand wheel, Gear, Expansion Rod

Valve Material List

Item	Name	Material
1	Body	Ductile Iron
2	Djsc	Ductile lron+EPDM
3	Nuts	Brass
4	Stem	SS416
5	Sealing Shim	EPDM
6	Bonnet	Ductile lron
7	Snap Ring	Brass
8	Gland	Ductile lron
9	Hand Wheel	Ductile lron
