Double Sphere Rubber Joint

RJ-02

Categories:

Flexible Rubber Joint

keywords：

TEL：

0086-18600252968

MESSAGE

Double Sphere Rubber Joint

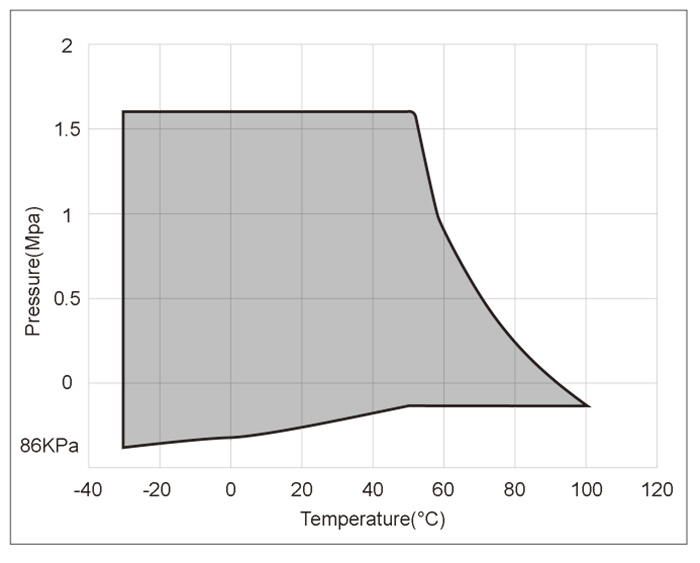

Technical Features

Size: DN32-DN350/ 1.25-14"
Working Pressure: 200PSI/PN10/PN16
Flange Standard: ASMEIANSI B16.1 Class 125 or 16.42Class 150 or BS EN 1092-2 PN16
Face to Face Standard:ASME B16.10 or BS EN558-1Working Temperature: O to 80°C

Valve Material List

Part No	Part	Standard Specification
1	Flange	Galvanized Carbon Steel
2	Reinforcing Rinc	Carbon Steel
3	Rubber(Inner)	EPDM
4	Dubber(Outer'	EPDM
5	Peinforcing Fabri	Nylon Fabric

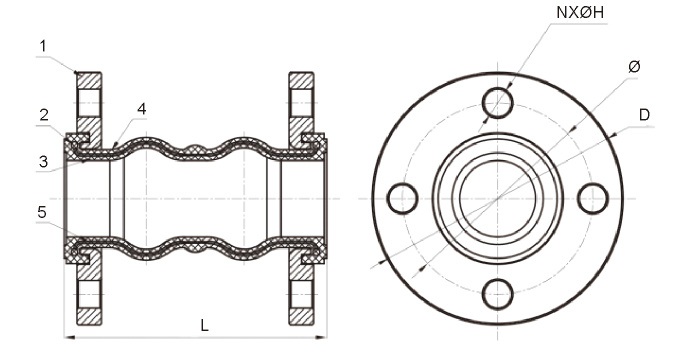

Dimensions

OM	INCH	Neutral Length(mm)				Axial(mm)		TransverseMovement(mm	AngularDeflection Deg.
OM	INCH	L	D	∅	N-∅H	Elongation	Comperssion	TransverseMovement(mm	AngularDeflection Deg.
32	1.25"	175	140	100	4X18	30	45	45	45
40	1.5"	175	150	110	4X18	30	45	45	45
50	2"	175	165	125	4X18	30	45	45	45
65	2.5"	175	185	145	8X18	30	45	45	45
80	4"	225	250	210	8X18	35	50	40	30
100	4"	225	220	180	8X18	35	50	40	30
125	5"	225	285	210	8X18	35	50	40	30
150	6"	225	285	240	8X22	35	60	35	15
200	8”	325	340	295	12X22	35	60	35	15
250	10"	325	405	355	12X26	35	60	35	15
300	12"	325	460	410	12X26	35	60	35	15
350	14"	350	520	470	12X26	35	60	35	15
