With Lock Type/Without Lock Type
Categories:
keywords:

TEL:
With Lock Type/Without Lock Type
Technical Features
Size: DN40-DN600/ 1.5"-24"
Working Pressure:200PSI/ 300PSI 1 PN10 1 PN16 1 PN25
Test Standard: API598
Flange Standard: ASME / ANSI B16.1 Class 125 or 16.42 Class 150 or BS EN 1092-2 PN16
Face to Face Standard: ASME B16.10 or BS EN558-1
Working Temperature: -10 to 200°C
Valve Material List
NO |
Part Name |
Marterial |
1 |
Body |
Ductile Iron |
2 |
Seat |
Brass |
3 |
Cover |
Ductile lron |
4 |
Hanger |
Ductile Iron |
5 |
Pin |
SS420/SS316 |
6 |
Nut/Peg |
Carbon Steel/SS304 |
7 |
Gasket |
Graphite |
8 |
Bolt/Washer |
Carbon Steel |
9 |
Bonnet |
Cast lron |

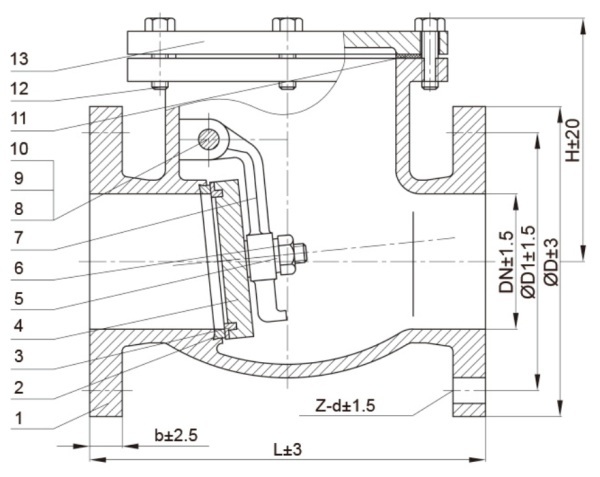

Dimensions
DN |
INCH |
L |
D |
D1 |
D2 |
H |
b |
f |
n-∅d |
40 |
1.5" |
180 |
150 |
110 |
88 |
114 |
19 |
3 |
4-19 |
50 |
2" |
200 |
165 |
125 |
102 |
127 |
19 |
3 |
4-19 |
65 |
2.5" |
240 |
185 |
145 |
122 |
137 |
19 |
3 |
4-19 |
80 |
3" |
260 |
200 |
160 |
138 |
150 |
19 |
3 |
8-19 |
100 |
4" |
300 |
220 |
180 |
158 |
164 |
19 |
3 |
8-19 |
125 |
5" |
350 |
250 |
210 |
188 |
185 |
19 |
3 |
8-19 |
150 |
6" |
400 |
285 |
240 |
212 |
205 |
19 |
3 |
8-23 |
200 |
8" |
500 |
340 |
295 |
268 |
249 |
22 |
3 |
12-23 |
250 |
10" |
600 |
405 |
355 |
319 |
305 |
22 |
3 |
12-28 |
300 |
12" |
700 |
460 |
410 |
370 |
412 |
24.5 |
4 |
12-28 |
350 |
14" |
800 |
520 |
470 |
415 |
445 |
26.5 |
4 |
16-28 |
400 |
16" |
900 |
580 |
525 |
465 |
505 |
28 |
4 |
16-31 |
450 |
18" |
1000 |
640 |
585 |
520 |
695 |
30 |
4 |
20-31 |
500 |
20" |
1100 |
715 |
650 |
570 |
750 |
31.5 |
4 |
20-34 |
600 |
24" |
1300 |
840 |
770 |
670 |
850 |
36 |
4 |
20-37 |
