300 PSI OSY GROOVE GATE Z81-300A
Technical Features
Nominal Pressure:300PSI
Groove standard:Metric or ANSI/AWWA C606
Face to Face Standard:ASME B16.10
Sizes:2V",3”,4”,5”,6”,8",10”,12"
Approvals:UL,CUL,FM,NSF/ANSI 61&NSF/ANSI 372
Maximum Working Pressure:300PSI (Maximum Testing Pressure:600
PSI)conforms to UL 262,ULC/ORD C 262-92,FM 1120/1130
Maximum Working Temperature:80℃/176F
Coating Details:Epoxy coated interior and exterior by Electrostatic Spray
or Coating upon request
NPT plug on body with 2 operating nuts
Certified lead-free by NSF/ANSI 61 &NSF/ANSI 372 is available

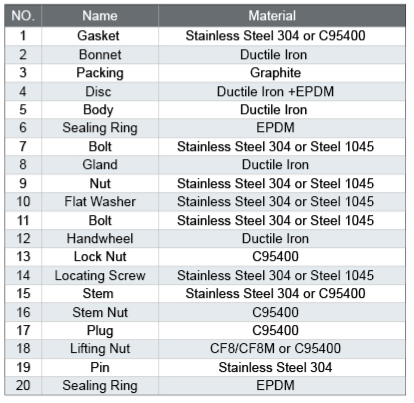

Valve Material List

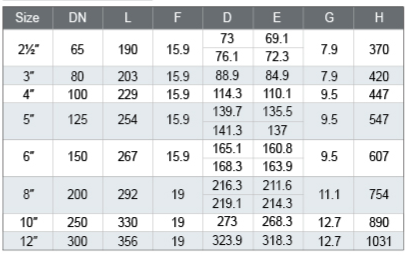

Dimensions
