Wall Type Indicator Post
Categories:
keywords：
TEL：
Wall Type Indicator Post
Technical Features
Approvals: UL, CUL,FM
Conforms to UL 789 & ULC/ORD-C789 & FM 1110Used to Operate a Valve Installed Behind the Wall
Operation Manual
Adjust the length of the connecting rod according to the depth of gatevalve and cut off the excessive part
Install the indicator post to the wall
Connect the indicator post and gate valve which is in the closed positionAdjust the indicator to the position of "SHUT”
3D Picture

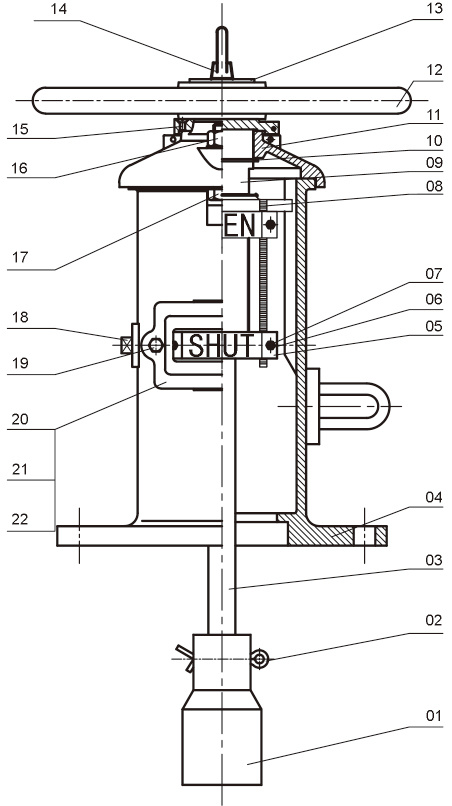

Material List
|
NO. |
Name |
Material |
|
1 |
Joint |
Cast Iron |
|
2 |
Cotter Pin |
Steel 1035 |
|
3 |
Driving Rod |
Steel 1045 |
|
4 |
Main Body |
Cast Iron |
|
5 |
Indicator Plate |
A413.0 |
|
6 |
Nut,Gasket |
Steel 1035 |
|
7 |
Stud Bolt |
Steel 1035 |
|
8 |
Position Bracket |
Stainless Steel 304 |
|
9 |
Driver |
Stainless Steel 304 |
|
10 |
Retainer Ring For Stem |
1566 |
|
11 |
Upper Cover |
Cast Iron |
|
12 |
Handwheel |
Cast Iron |
|
13 |
Gasket |
A283 Gr.C |
|
14 |
Lift Ring |
Steel 1035 |
|
15 |
Screw |
Steel 1035 |
|
16 |
Nut |
Steel 1035 |
|
17 |
Bolt |
Steel1035 |
|
18 |
Screwed Plug |
Steel 1035 |
|
19 |
Bolt, Flat Gasket |
Stainless Steel 304 |
|
20 |
Keyhole Plate |
A283 Gr.C |
|
21 |
Keyhole |
Organic Glass |
|
22 |
Keyhole Plate Gasket |
EPDM |
