PRODUCTS CENTER
Ningjin APC industries Incorporated Company is a leading manufacturer specializing in development and production of Fire Protection Valves, Industrial Valves, and Marine Valves in North China.
一.Approval: FM approved UL/ULC listed
二.Usage: Before sprinkle head, before and after wet alarm valve and deluge valve, high-rising building fire fighting system, industrial factory building fire protection system.
三．Technical specification :
Pressure rating: 300psi
Temperature range : -20℃ to 120℃.
Structure:Butterfly type and groove end
Application : Indoor and outdoor usage
Double –seal disc : resilient EPDM coated
Factoroy Installed supervisiory tamper switch assembly
Design standard : API 609
Groove standard ANSI/AWWA C606
Top flange standard: ISO 5211
Test standard :FM 1112/UL 1091
Model : GD-381X/GD-381Y
Learn More
一.Approval: UL/ULC listed
二.Usage: Before sprinkle head, before and after wet alarm valve and deluge valve, high-rising building fire fighting system, industrial factory building fire protection system.
三．Technical specification :
Fire protection grooved Butterfly Valve is UL/ULC listed with pressure rating 300psi or 175psi
Temperature range : -20℃ to 120℃.
Structure:Butterfly type and groove end
Application : Indoor and outdoor usage
Double –seal disc : resilient EPDM coated
Factoroy Installed supervisiory tamper switch assembly
Design standard : API 609
Groove standard ANSI/AWWA C606
Top flange standard: ISO 5211
Test standard: API 598
Model : HGD-381X / HGD-381X-175/HFGD-381X/HFGD-381X-175
Learn More

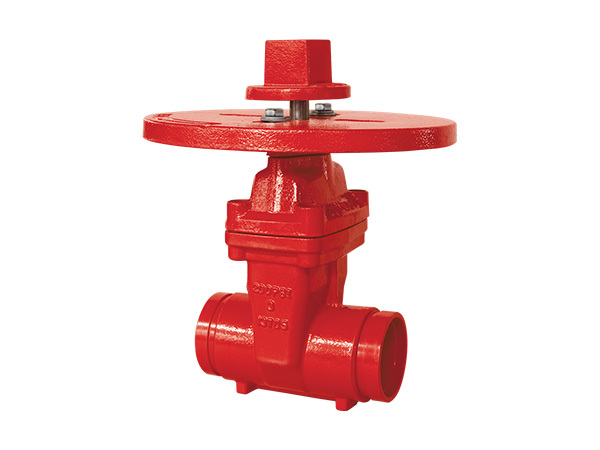

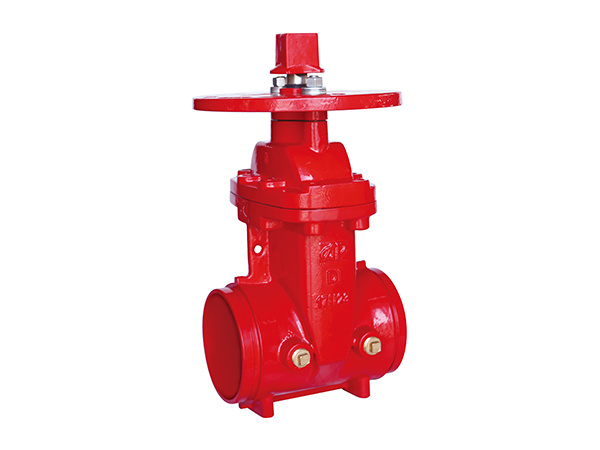

Gate Valve Model: Z85
Resilient Wedge NRS Gate Valve –Groove Ends
Technical Features
Conforms: ANSI / AWWA C515
Connections: Groove
Sizes: 2", 2½", 3", 4", 5", 6", 8", 10", 12"
Approvals: UL, ULC, FM, NSF/ ANSI 61 & NSF/ ANSI 372
2’’ only with FM
Maximum Working Pressure: 200 PSI (Maximum Testing Pressure: 400 PSI) conforms to UL 262, ULC/ORD C262-92, & FM class 1120/1130
Maximum Working Temperature: -20°C to 80°C
Groove standard : Metric or AWWA C606
Application: Buried underground connected with vertical indicator post and wall type indicator . Fire inflow water, drain pipe, high-rising building fire fighting system, industrial factory building fire protection system.
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray conforms to AWWA C550
Disc: EPDM Rubber Encapsulated Ductile Iron Wedge
Gate valve can also be installed with handwheel
Certified lead-free by NSF/ ANSI 61 & NSF/ ANSI 372
Valve Material List
17
Countersunk Head Bolt
1
1045,ASTM A29
16
Platen
1
DI,ASTM A536 65-45-12
15
Coupling flange
2
DI,ASTM A536 65-45-12
14
Flat Washer
2
1045,ASTM A29
13
Nut
2
1045,ASTM A29
12
Stud
1
1045,ASTM A29
11
Bolt
1
1045,ASTM A29
10
Minipad
1
1045,ASTM A29
09
Wrench Nut
1
DI,ASTM A536 65-45-12
08
O-Ring
3
EPDM,ASTM D2000
07
Retainer Ring
1
C95400, ASTM B148
06
Cap
1
DI,ASTM A536 65-45-12
05
Stem
1
S.S.304,ASTM A276
04
Gasket
1
EPDM,ASTM D2000
03
Nut
1
C95400, ASTM B148
02
Disc
1
DI,ASTM A536 65-45-12 +EPDM,ASTM D2000
01
Body
1
DI,ASTM A536 65-45-12
NO.
Name
Qty
Material
Dimensions
3D Pictures
Advantages of APC Gate Valves
1.Wedge coated by high performance rubber through newest vulcanization technology to make sure precise dimension, good sealing and high corrosion resistance
2.Tight junction inner trim structure to assure longlife operation.
3.The bottom of gate valve adopted straight-through design, no foreigh matter store to make sure smooth flow and reliable sealing
4.Self-sealing design between the bonnect and body make the sealing more tight when pressure is higher wthin the allowable pressure range.
5. Multiple sealing structure to protect the stem under pessure during operation maintenance , no damage to the operator.
Learn More

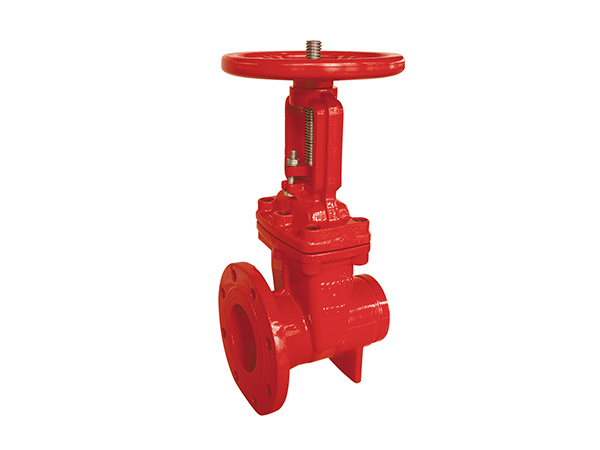

Gate Valve Model: Z481

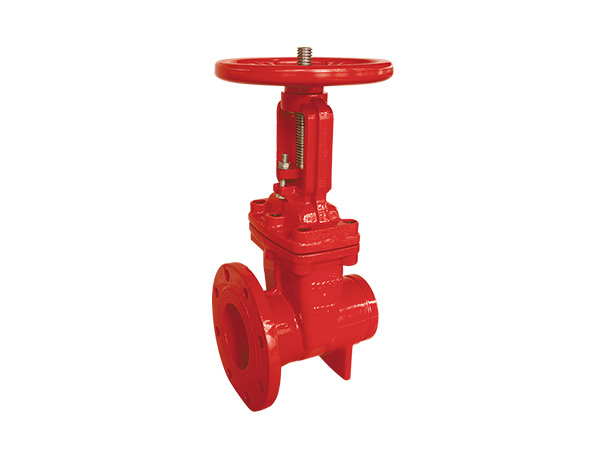

Resilient Wedge OS&Y Gate Valve – Flange ×Groove Ends
Technical Features
Conforms: ANSI / AWWA C515
Sizes: 2", 2½", 3", 4", 5", 6", 8", 10", 12"
Approvals: UL, ULC, FM, NSF/ ANSI 61 & NSF/ ANSI 372
Maximum Working Pressure: 200 PSI (Maximum Testing Pressure: 400 PSI) conforms to UL 262, ULC/ORD C262-92, & FM class 1120/1130
Maximum Working Temperature: -20°C to 80°C
Flange standard: ASME/ANSI B16.1 Class 125 or ASME /ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB/T9113.1
Groove standard : Metric or AWWA C606
Application: Indoor & Outdoor Use, Fire inflow water, drain pipe, high-rising building fire fighting system, industrial factory building fire protection system.
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray conforms to AWWA C550
Disc: EPDM Rubber Encapsulated Ductile Iron Wedge
Mark: APC Gate valve can be installed with Tamper Switch
Certified lead-free by NSF/ ANSI 61 & NSF/ ANSI 372
Valve Material List
14
Cylinder Pin
1
S.S.304,ASTM A276
13
Countersunk Head Bolt
N
1045,ASTM A29
12
Lock Nut
1
1045,ASTM A29
11
Handwheel
1
1045,ASTM A29
10
Rotating Nut
1
C95400, ASTM B148
09
Nut
2
1045,ASTM A29
08
Gland
1
DI,ASTM A536 65-45-12
07
Bolt
2
1045,ASTM A29
06
Yoke
1
DI,ASTM A536 65-45-12
05
Stem
1
S.S.304,ASTM A276
04
Sealing Pad
1
EPDM,ASTM D2000
03
Connecting Part
1
C95400, ASTM B148
02
Disc
1
DI,ASTM A536 65-45-12 +EPDM,ASTM D2000
01
Body
1
DI,ASTM A536 65-45-12
NO.
Name
Qty
Material
Dimensions
3D Pictures
Advantages of APC Gate Valves
1.Wedge coated by high performance rubber through newest vulcanization technology to make sure precise dimension, good sealing and high corrosion resistance
2.Tight junction inner trim structure to assure longlife operation.
3.The bottom of gate valve adopted straight-through design, no foreigh matter store to make sure smooth flow and reliable sealing
4.Self-sealing design between the bonnect and body make the sealing more tight when pressure is higher wthin the allowable pressure range.
5. Multiple sealing structure to protect the stem under pessure during operation maintenance , no damage to the operator.
Learn More

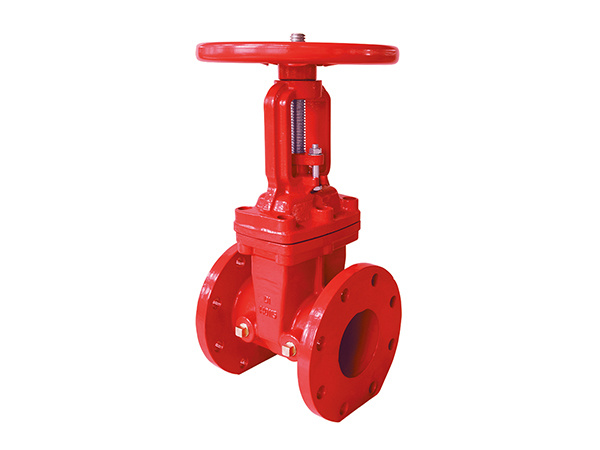

Technical Features
*Nominal Pressure: 200PSI
*Flange Standard: ASME/ANSI B16.1 Class 125 or ASME/ANSI B16.42 Class 150
or BS EN1092-2 PN16 or GB/T9113.1
*Face to Face Standard: ASME B16.10.
*Sizes: 2",2½", 3", 4", 5”, 6", 8", 10", 12" with FM UL CUL
14", 16" with FM only
*Approvals: FM,UL, CUL, NSF/ANSI 61 & NSF/ANSI 372
*Maximum Working Pressure: 200 PSI (Maximum Testing Pressure: 400 PSI) conforms to UL 262, ULC/ORD C262-92 , FM class 1120 / 1130.
*Maximum Working Temperature:80°C / 176°F
*Coating Details:Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
*Certified lead-free by NSF/ANSI 61 & NSF / ANSI 372 is available.
Learn More
