200 PSI OSY FLANGE GATE

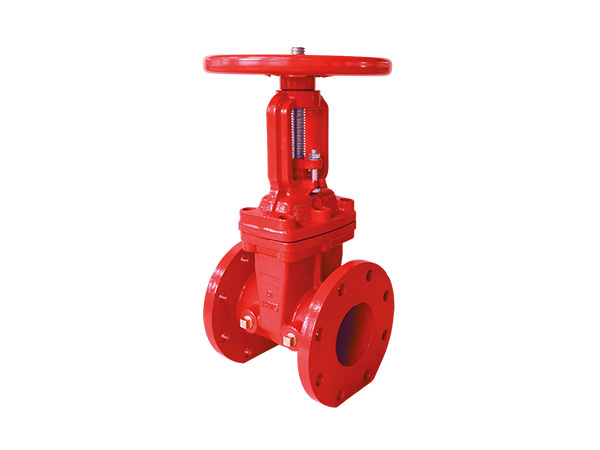

200PSI OS&Y Flanged End Gate Valve Model: Z41

Resilient Wedge OS&Y Gate Valve – Flanged End

Technical Features

*Nominal Pressure: 200PSI

*Flange Standard: ASME/ANSI B16.1 Class 125 or ASME/ANSI B16.42 Class 150

or BS EN1092-2 PN16 or GB/T9113.1

*Face to Face Standard: ASME B16.10.

*Sizes: 2",2½", 3", 4", 5”, 6", 8", 10", 12" with FM UL CUL

14", 16" with FM only

*Approvals: FM,UL, CUL, NSF/ANSI 61 & NSF/ANSI 372

*Maximum Working Pressure: 200 PSI (Maximum Testing Pressure: 400 PSI) conforms to UL 262, ULC/ORD C262-92 , FM class 1120 / 1130.

*Maximum Working Temperature:80°C / 176°F

*Coating Details:Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request

*Certified lead-free by NSF/ANSI 61 & NSF / ANSI 372 is available.

14	Cylinder Pin	1	S.S.304,ASTM A276
13	Countersunk Head Bolt	N	1045,ASTM A29
12	Lock Nut	1	1045,ASTM A29
11	Handwheel	1	1045,ASTM A29
10	Rotating Nut	1	C95400, ASTM B148
09	Nut	2	1045,ASTM A29
08	Gland	1	DI,ASTM A536 65-45-12
07	Bolt	2	1045,ASTM A29
06	Yoke	1	DI,ASTM A536 65-45-12
05	Stem	1	S.S.304,ASTM A276
04	Sealing Pad	1	EPDM,ASTM D2000
03	Connecting Part	1	C95400, ASTM B148
02	Disc	1	DI,ASTM A536 65-45-12 +EPDM,ASTM D2000
01	Body	1	DI,ASTM A536 65-45-12
NO.	Name	Qty	Material

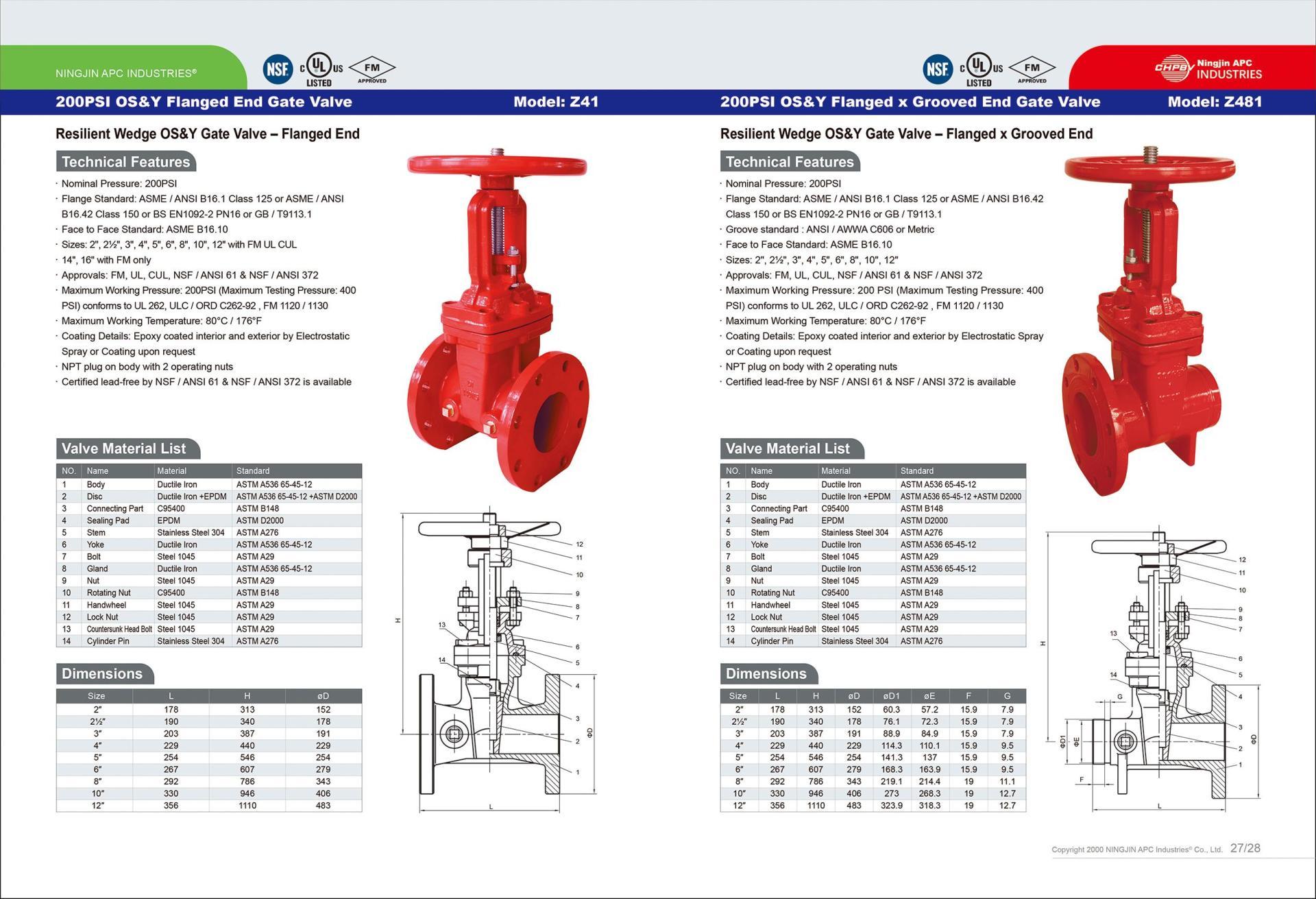

Dimensions

3D Pictures

Advantages of APC Gate Valves

1.Wedge coated by high performance rubber through newest vulcanization technology to make sure precise dimension, good sealing and high corrosion resistance

2.Tight junction inner trim structure to assure longlife operation.

3.The bottom of gate valve adopted straight-through design, no foreigh matter store to make sure smooth flow and reliable sealing

4.Self-sealing design between the bonnect and body make the sealing more tight when pressure is higher wthin the allowable pressure range.

5. Multiple sealing structure to protect the stem under pessure during operation maintenance , no damage to the operator.
