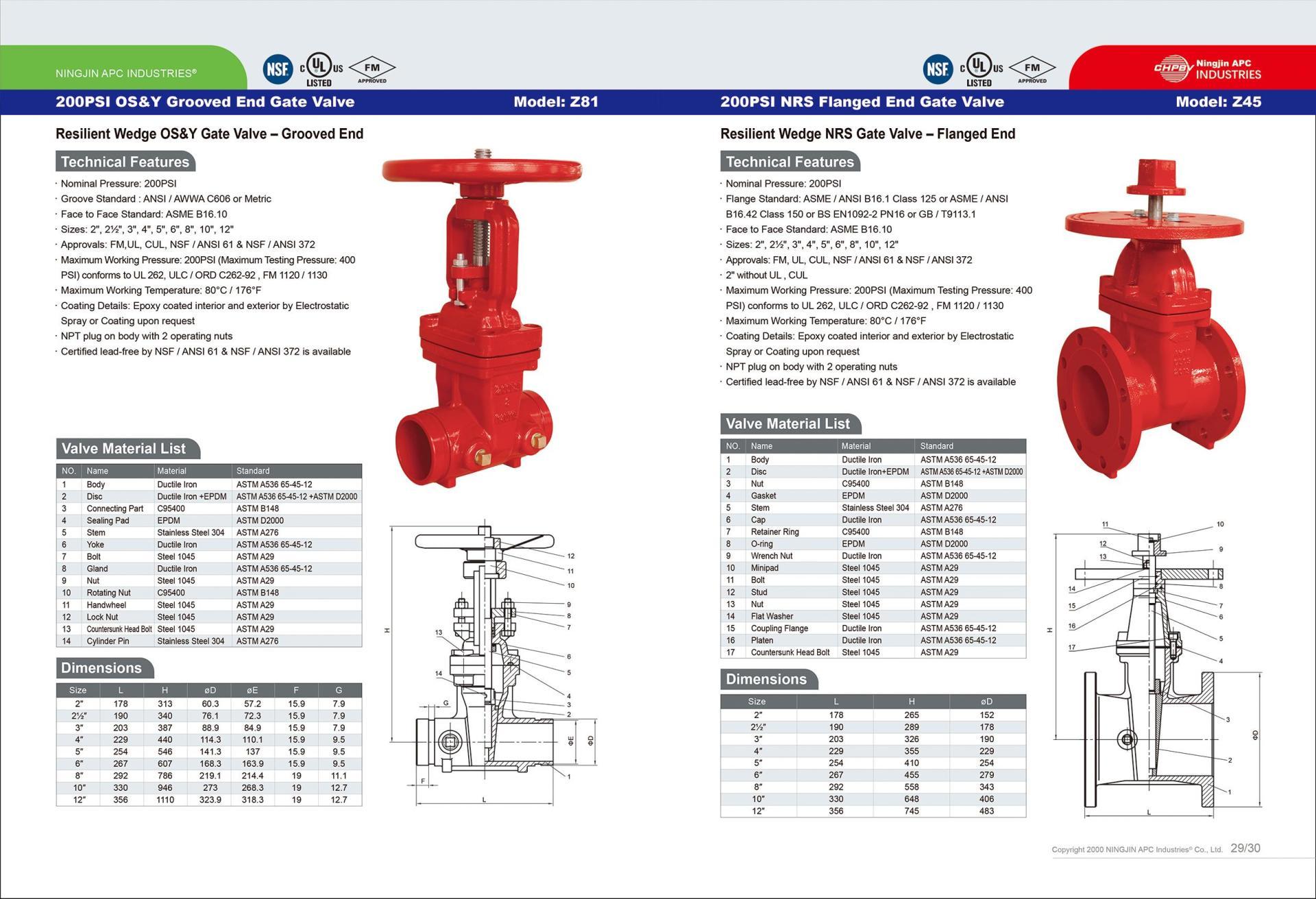

200 PSI NRS Flange Gate
Gate Valve Model: Z45
Resilient Wedge NRS Gate Valve – Flange Ends
Technical Features
- Conforms: ANSI / AWWA C515
- Sizes: 2", 2½", 3", 4", 5", 6", 8", 10", 12"
- Approvals: UL, ULC, FM, NSF/ ANSI 61 & NSF/ ANSI 372
- 2’’ only with FM
Maximum Working Pressure: 200 PSI (Maximum Testing Pressure: 400 PSI) conforms to UL 262, ULC/ORD C262-92, & FM class 1120/1130
- Maximum Working Temperature: -20°C to 80°C
- Flange standard: ASME/ANSI B16.1 Class 125 or ASME /ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB/T9113.1
Application: Buried underground connected with vertical indicator post and wall type indicator . Fire inflow water, drain pipe, high-rising building fire fighting system, industrial factory building fire protection system.
- Coating Details: Epoxy coated interior and exterior by Electrostatic Spray conforms to AWWA C550
- Disc: EPDM Rubber Encapsulated Ductile Iron Wedge
Gate valve can also be installed with handwheel
Certified lead-free by NSF/ ANSI 61 & NSF/ ANSI 372
Valve Material List
17 |
Countersunk Head Bolt |
1 |
1045,ASTM A29 |
16 |
Platen |
1 |
DI,ASTM A536 65-45-12 |
15 |
Coupling flange |
2 |
DI,ASTM A536 65-45-12 |
14 |
Flat Washer |
2 |
1045,ASTM A29 |
13 |
Nut |
2 |
1045,ASTM A29 |
12 |
Stud |
1 |
1045,ASTM A29 |
11 |
Bolt |
1 |
|
10 |
Minipad |
1 |
1045,ASTM A29 |
09 |
Wrench Nut |
1 |
DI,ASTM A536 65-45-12 |
08 |
O-Ring |
3 |
EPDM,ASTM D2000 |
07 |
Retainer Ring |
1 |
C95400, ASTM B148 |
06 |
Cap |
1 |
DI,ASTM A536 65-45-12 |
05 |
Stem |
1 |
S.S.304,ASTM A276 |
04 |
Gasket |
1 |
EPDM,ASTM D2000 |
03 |
Nut |
1 |
C95400, ASTM B148 |
02 |
Disc |
1 |
DI,ASTM A536 65-45-12 +EPDM,ASTM D2000 |
01 |
Body |
1 |
DI,ASTM A536 65-45-12 |
NO. |
Name |
Qty |
Material |
Dimensions
3D Pictures
Advantages of APC Gate Valves
1.Wedge coated by high performance rubber through newest vulcanization technology to make sure precise dimension, good sealing and high corrosion resistance
2.Tight junction inner trim structure to assure longlife operation.
3.The bottom of gate valve adopted straight-through design, no foreigh matter store to make sure smooth flow and reliable sealing
4.Self-sealing design between the bonnect and body make the sealing more tight when pressure is higher wthin the allowable pressure range.
5. Multiple sealing structure to protect the stem under pessure during operation maintenance , no damage to the operator.
