Flange Type

 Technical Features

Size: DN50-DN1000/ 2"-40"
Working Pressure: 200PSI / PN10/ PN16
Test Standard: API598
Flange Standard: ASME / ANSI B16.1 Class 125 or 16.42 Class 150 or BS EN 1092-2 PN16
Face to Face Standard: ASME B16. 10 or BS EN558-1
Working Temperature: -10 to 80°C



11

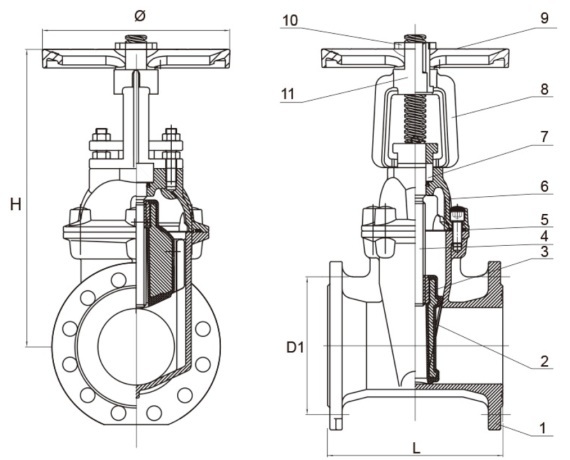

 Valve Material List

Item

Name

Material

1

Body

Ductile Iron

2

Disc

Ductile Iron+EPDM

3

Nuts

Brass

4

Stem

SS416

5

Sealing Shim

EPDM

6

Bonnet

Ductile Iron

7

Filler

Brass

8

Support

Graphite

9

Hand Wheel

Ductile lron

10

Lock Nut

Ductile lron

11

Screw

Brass

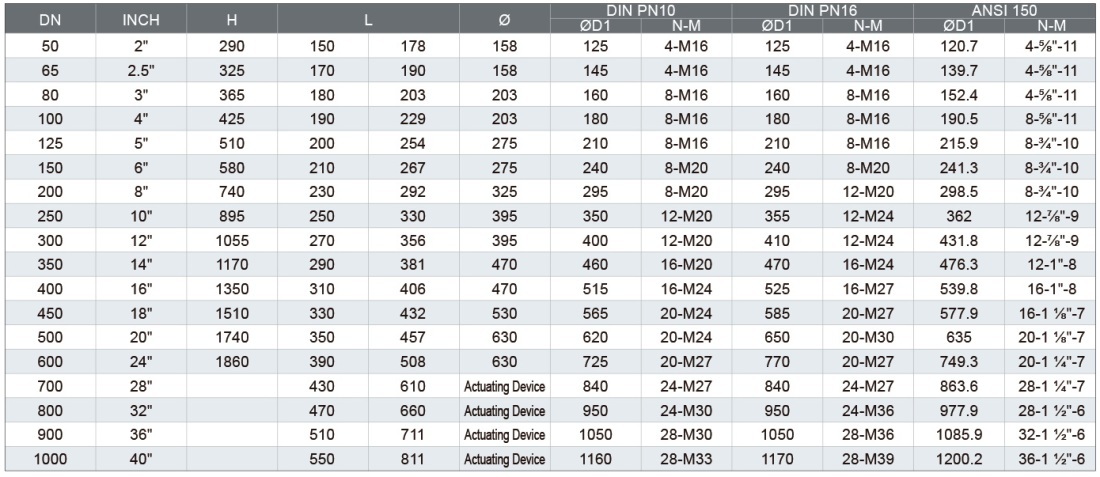

 Dimensions

11
