U Type Butterfly Valve
U Type Butterfly Valve

U Type Butterfly Valve

BV-12

Categories:

Butterfly Valve

keywords：

U Type Butterfly Valve
电话

TEL：

0086-18600252968

MORE
MESSAGE

U Type Butterfly Valve

 Technical Features

Size: DN50-DN2000 12"-80"
Working Pressure: 200PSI / PN10/ PN16
Test Standard: API598
Flange Standard: ASME / ANSI B16.1 Class 125 or 16 42 Class 150 or BS EN 1092-2 PN16
Mounting Plate Standard: ISO 5211
Face to Face Standard: ASME B16.10 or BS EN558-1
Working Temperature: -20 to 120°C
Operation: Handle Lever, Gear



11



 Valve Material List

Item

Name

Mat

1

Shaft

SS416/SS316

2

Bushing

PTFE

3

rind

NBR

4

Body

Ductile lron / Cast lron

5

Seat

EPDM/NBR/VITON

6

Disc

Ductile lron/ CF8M/CF8

7

Bushinc

PTFF

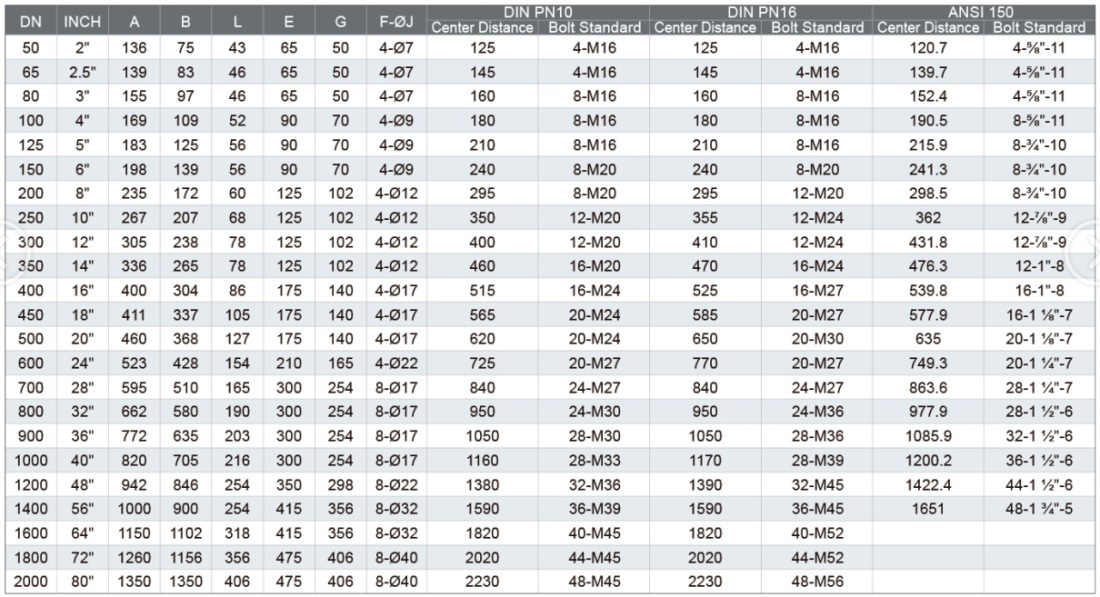

 Dimensions

11
