With Lock Type/Without Lock Type
Technical Features
Size: DN15-DN50/ 0.5"-2"
Working Pressure: 200PSI/ 300PSI / PN10 / PN16
Design Standard: API608
Test Standard: API598
Connection Standard: ASME B1.20.1 / BS EN 10226-1/GB/T 7307
Working Temperature: -20 to 180°C
FM/UL Approved

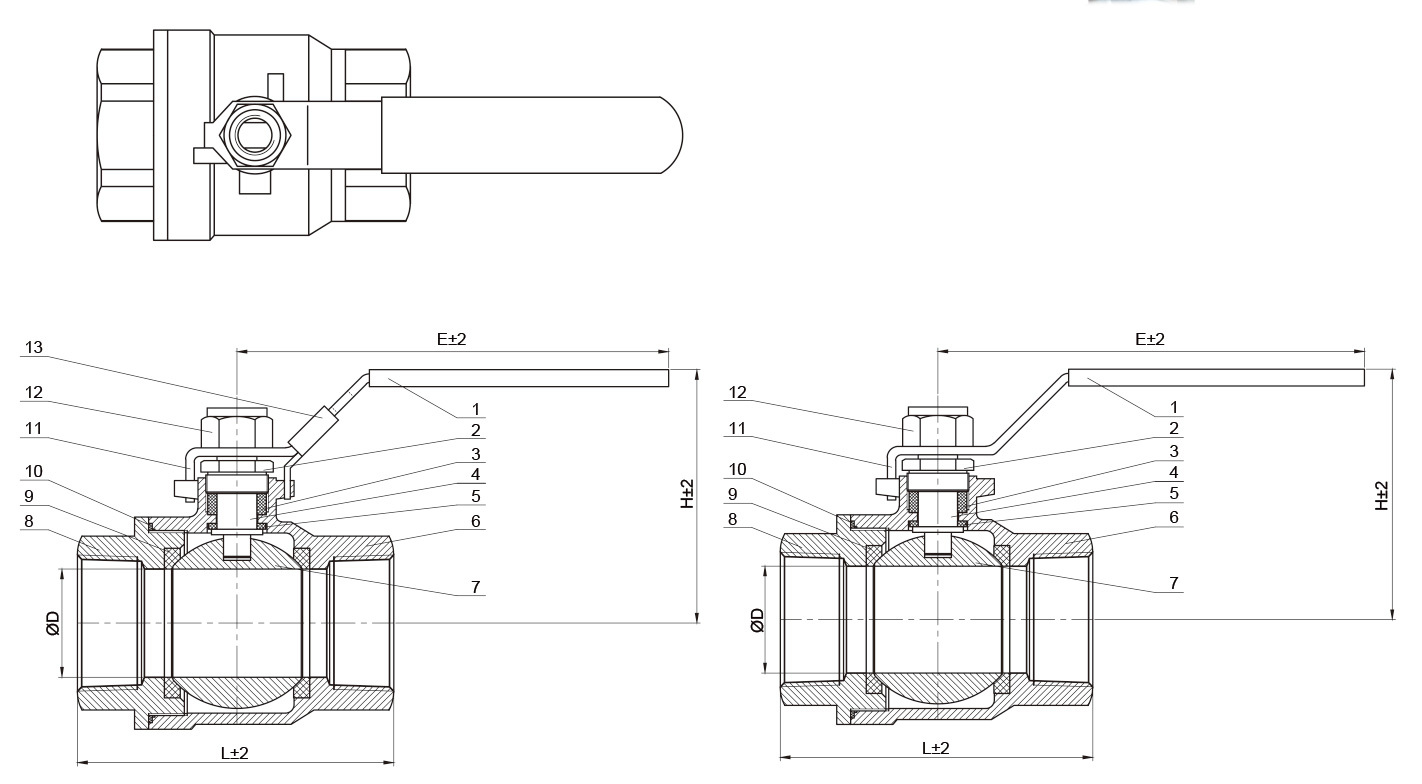

Valve Material List
|
0 |
Name |
Qty |
Material |
|
1 |
Handle sleeye |
1 |
PVC |
|
2 |
Gland |
1 |
S20100/S30400/S31600 |
|
3 |
packing |
1 |
PTFE |
|
4 |
Stem |
1 |
S20100/S30400/S31600 |
|
5 |
Thrust washer |
1 |
PTFE |
|
6 |
Body |
1 |
CF8 / CF8M |
|
7 |
Ball |
1 |
CF8/ CF8M |
|
8 |
End cap |
1 |
CF8/ CF8M |
|
9 |
Seat |
2 |
PTFE |
|
10 |
Gasket |
1 |
PTFE |
|
11 |
Uandle(lock' |
1 |
S20100/S30400/S31600/Steel |
|
12 |
Nut |
1 |
S20100 /S30400 /S31600 |
|
13 |
Lock Block |
1 |
S20100/S30400/S31600/Steel |
Dimensions
|
DN |
INCH |
D |
L |
E |
H |
|
15 |
0.5" |
15 |
64.5 |
100 |
58 |
|
20 |
0.78 |
20 |
77 |
100 |
62 |
|
25 |
11 |
25 |
85 |
126 |
68 |
|
32 |
125" |
32 |
100 |
126 |
75 |
|
40 |
1.5" |
38 |
111 |
150 |
89 |
|
50 |
2" |
50 |
124 |
150 |
97 |
