Flange/Groove/Flange*Groove/Groove*Flange
Technical Features
Maximum Adjust Pressure: 200PSI-300PSI/PN10/PN16
Flange Standard: ASME/ANSI B16.1 Class 125 or ASME/ANSI B16.42 CLASS 150 or BS EN1092-2 PN16 or GB/T9113.1
Groove Standard: AWWA C606/ISO 6182-12
Working Temperature: 4°C-70°C
Installation Height of the Gong According to Clients' requirements
Gong can be Installed indoor or outdoor through wall as to clients' requirements
External Dimensions for reference only
Coating details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
Alarm check valves use in wet pipe of sprinkler system, Fire protection system
Valve Material List
|
Size |
Name |
Material |
QTY. |
|
1 |
Alarm Valve |
|
1 |
|
2 |
Orifice,retard |
C954/SS304 |
1 |
|
3 |
Tee |
Steel/SS304 |
2 |
|
4 |
Nipple |
Steel/SS304 |
6 |
|
5 |
Union |
Steel/SS304 |
1 |
|
6 |
Nipple |
Steel/SS304 |
1 |
|
7 |
Y Strainer |
C954/SS304 |
1 |
|
8 |
Retard Chamber |
Steel |
1 |
|
9 |
Gona Assembly |
Component |
1 |
|
10 |
Nipple |
Steel/SS304 |
1 |
|
11 |
Reducer Bushing |
Steel/SS304 |
1 |
|
12 |
Pressure Switch |
Component |
1 |
|
13 |
Cross |
Steel/SS304 |
1 |
|
14 |
Reducer Bushing |
Steel/SS304 |
1 |
|
15 |
Plug |
Steel/C954/SS304 |
1 |
|
16 |
Cross |
Steel/SS304 |
2 |
|
17 |
Pressure Gauge |
Component |
3 |
|
18 |
3-way Valve Gauge |
C954/SS304 |
3 |
|
19 |
Plug |
Steel/C954/SS304 |
3 |
|
20 |
Orifice.retard |
C954/SS304 |
1 |
|
21 |
Check Valve |
C954/SS304 |
1 |
|
22 |
Nipple |
Steel/SS304 |
1 |
|
23 |
Nipple |
Steel/SS304 |
3 |
|
24 |
Tee |
Steel/SS304 |
2 |
|
25 |
Nipple |
Steel/SS304 |
4 |
|
26 |
Nipple |
Steel/SS304 |
1 |
|
27 |
Nipple |
Steel/SS304 |
1 |
|
28 |
Ball Valve |
C954/SS304 |
1 |
|
29 |
Nipple |
Steel/SS304 |
1 |
|
30 |
Ball Valve |
C954/SS304 |
1 |
|
31 |
Flbow |
Steel/SS304 |
2 |
|
32 |
Nipple |
Steel/SS304 |
1 |
|
33 |
Ball Valve |
C954/SS304 |
1 |

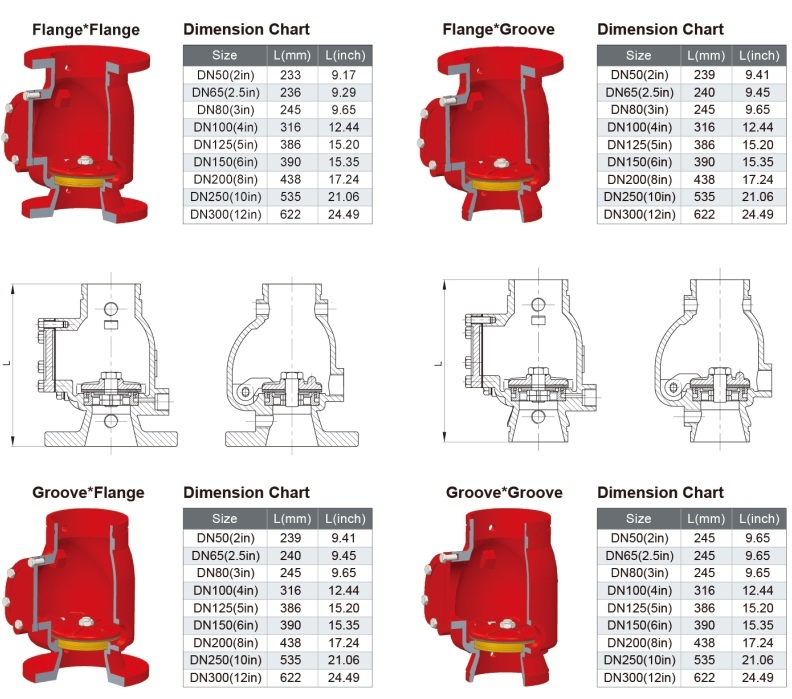

Dimensions
|
Size |
a |
b |
c |
d |
|
2" |
340 |
205 |
145 |
110 |
|
2.5" |
340 |
205 |
145 |
110 |
|
3" |
340 |
205 |
145 |
110 |
|
4" |
342 |
250 |
160 |
136 |
|
5" |
349 |
274 |
180 |
162 |
|
6" |
349 |
274 |
180 |
162 |
|
8" |
415 |
290 |
205 |
195 |
|
10" |
4.75 |
340 |
240 |
235 |
|
12" |
495 |
368 |
270 |
270 |
General Technical Information
