Resilient Wedge os&Y Gate Valve-Flanged End

300PSI NRS Flanged End Gate Valve Model: Z85-300A

Technical Features A

Nominal Pressure: 300PSI
Groove standard: Metric or ANSI/AW A C606
Face to Face Standard: ASME B16.10
Sizes: 212",3",4",5",6",8",10",12"
Approvals: UL, CUL,FM,NSF/ANSI61&NSF/ANSI372
Maximum Working Pressure:300PSI(Maximum Testing Pressure:600
PSI) conforms to UL262,ULC/ORD C262-92,FM1120/1130
Maximum Working Temperature: 80°℃/176°F
Coating Details:Epoxy coated interior and exterior by Electrostatic
Spray or Coating upon request
NPT plug on body with 2 operating nuts
Certified lead-free by NSF/ANSI61&NSF/ANSI372 is available

Resilient Wedge Os&Y Gate valve-Flangedx Grooved End

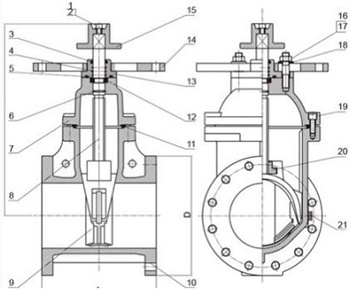

Valve Material List

NO.	Name	Material
1	Flat Washer	Steel 1045 or Stainless Steel 304
2	Inner Hexagon Screw	Steel 1045 or Stainless Steel 304
3	Sealing Gland	EPDM
4	O-Ring	EPDM
5	Sealing Ring	EPDM
6	O-Ring	EPDM
7	Bonnet	Ductile Iron
8	Stem	Stainless Steel 304
9	Disc	Ductile Iron +EPDM
10	Body	Ductile Iron
11	Sealing Ring	EPDM
12	Retaining Ring	C95400
13	Gland	Ductile Iron
14	Terminal Pad	Ductile Iron
15	Link Block	Ductile Iron
16	Nut	Stainless Steel 304 or Steel 1045
17	Studs	Stainless Steel 304 or Steel 1045
18	Washer	Steel 1045
19	Inner Hexagon Screw	Steel 1045
20	Master Screw	C95400
21	Plug	C95400
