APC

Hard Sealing Type
Hard Sealing Type

Hard Sealing Type

BV-14

Categories:

Butterfly Valve

keywords：

Hard Sealing Type
电话

TEL：

0086-18600252968

MORE
MESSAGE

Hard Sealing Type

 Technical Features

Size: DN50-DN2400 / 2"-96"
Working Pressure: 200PSI / PN10/ PN16
Test Standard: API 598
Flange Standard: ASME / ANSI B16.1 Class 125 or 16.42 Class 150 or BS EN 1092-2 PN16
Mounting Plate Standard: ISO 5211
Face to Face Standard: ASME B16.10 or BS EN558-1
Working Temperature: -10 to 80°C
Operation: Handle Lever, Gear



11

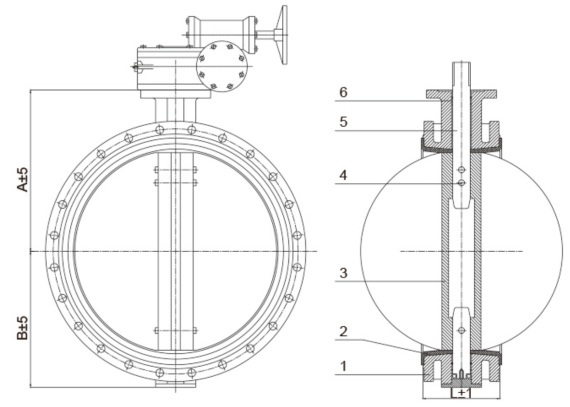

 Valve Material List

No.

Part Name

Material

1

Body

Ductile lron/ CF8/CF8M

2

Seat

NBR /EPDM/PTFE

3

Disc

Ductile lron/ CF8/CF8M

4

Taper Pin

SS316/SS416

5

Stem

SS316/SS416

6

Bushing

PTFF



 Dimensions

11
