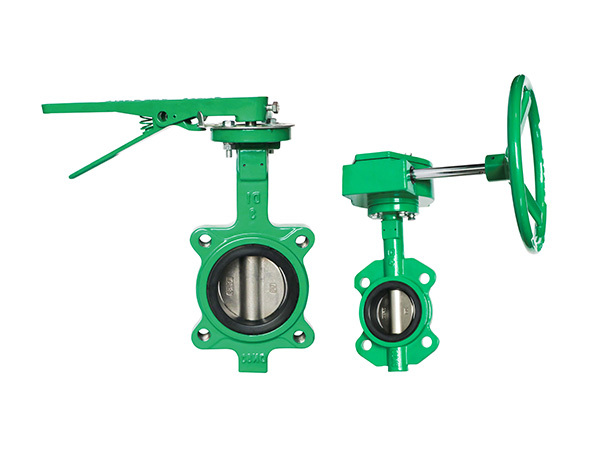

Lug/ Wafer Butterfly Valve
Lug/ Wafer Butterfly Valve

Lug/ Wafer Butterfly Valve

BV-05/06

Categories:

Butterfly Valve

keywords：

Lug/ Wafer Butterfly Valve
电话

TEL：

0086-18600252968

MORE
MESSAGE

Lug/ Wafer Butterfly Valve

 Technical Features

Size: DN40-DN1200/ 1.5"-48"
Working Pressure: DN40-DN300/ 1 .5"-12": 200PSI / DN350-DN1200/ 14"-48": 150 PSI
Design Standard: API 609
Testing Standard: API 598
Flange Standard: ASME / ANSI B16.1 Class 125 or 16.42 Class 150 or BS EN 1092-2 PN16
Mounting Plate Standard: ISO 5211
Face to Face Standard: ASME B16.10 or BS EN558-1
Working Temperature: -20 °C-120 °C
NOTE:
NSF61 & NSF372 approval available for 2"-12" butterfly valve Lug type butterfly valve is suitable for end of line service (bidirectional dead end service) to rated pressure


11

 Valve Material List

NO.

Description

Material

1

Body

Ductile lron/Cast lron

2

Disc

DI/CF8/CF8M/Bronze

3

Shaft

SS416/SS316

4

Seat

EPDM/NBR/VITON

5

Bushing

PTFE

6

Y type Sealing Ring

NBR

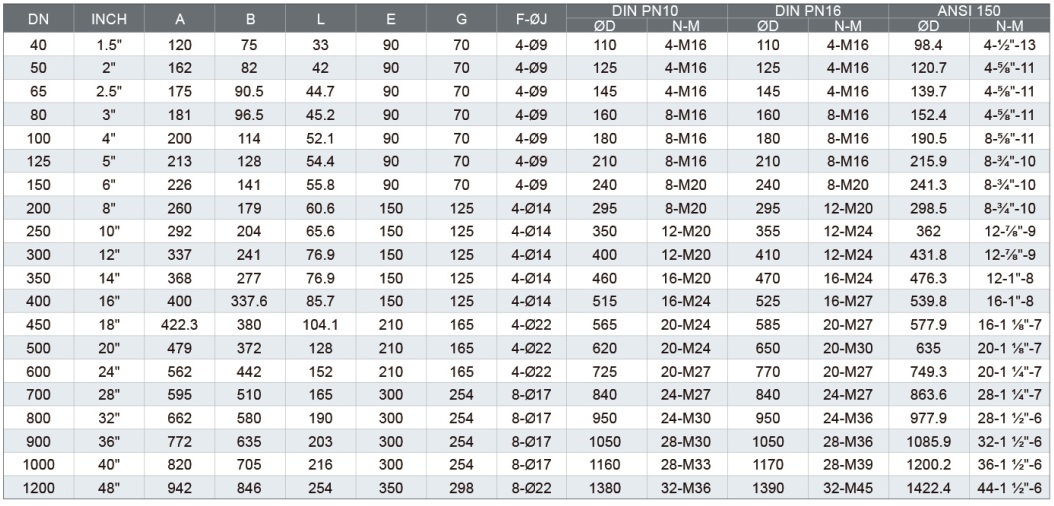

 Dimensions

11
