Product Description
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

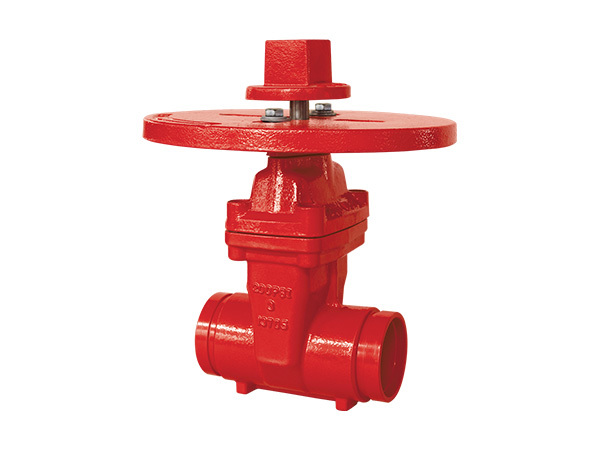

Gate Valve                                                                         Model: Z85

Resilient Wedge NRS Gate Valve –Groove Ends

Technical Features

  • Conforms: ANSI / AWWA C515
  • Connections: Groove
  • Sizes: 2", ", 3", 4", 5",  6", 8", 10", 12"
  • Approvals: UL, ULC, FM, NSF/ ANSI 61 & NSF/ ANSI 372
  • 2’’ only with FM

Maximum Working Pressure:  200 PSI (Maximum Testing Pressure: 400 PSI) conforms to UL 262, ULC/ORD C262-92, & FM class 1120/1130

  • Maximum Working Temperature: -20°C to 80°C

Groove standard : Metric or AWWA C606

  •

Application: Buried underground connected with vertical indicator post and wall type indicator . Fire inflow water, drain pipe, high-rising building fire fighting system, industrial factory building fire protection system.

  • Coating Details: Epoxy coated interior and exterior by Electrostatic Spray conforms to AWWA C550
  • Disc: EPDM Rubber Encapsulated Ductile Iron Wedge
  • Gate valve can also be installed with handwheel

Certified lead-free by  NSF/ ANSI 61 & NSF/ ANSI 372



 Valve Material List

17

Countersunk Head Bolt

1

1045,ASTM A29

16

Platen

1

DI,ASTM A536 65-45-12

15

Coupling flange

2

DI,ASTM A536 65-45-12

14

Flat Washer

2

1045,ASTM A29

13

Nut

2

1045,ASTM A29

12

Stud

1

1045,ASTM A29

11

Bolt

1

1045,ASTM A29

10

Minipad

1

1045,ASTM A29

09

Wrench Nut

1

DI,ASTM A536 65-45-12

08

O-Ring

3

EPDM,ASTM D2000

07

Retainer Ring

1

C95400, ASTM B148

06

Cap

1

DI,ASTM A536 65-45-12

05

Stem

1

S.S.304,ASTM A276

04

Gasket

1

EPDM,ASTM D2000

03

Nut

1

C95400, ASTM B148

02

Disc

1

DI,ASTM A536 65-45-12 +EPDM,ASTM D2000

01

Body

1

DI,ASTM A536 65-45-12

NO.

Name

Qty

Material



Dimensions

3D Pictures



Advantages of APC Gate Valves

1.Wedge coated by high performance rubber through newest vulcanization technology to make sure precise dimension, good sealing and high corrosion resistance

2.Tight junction inner trim structure to assure longlife operation.

3.The bottom of gate valve adopted straight-through design, no foreigh matter store to make sure smooth flow and reliable sealing

4.Self-sealing design between the bonnect and body make the sealing more tight when pressure is higher wthin the allowable pressure range.

5. Multiple sealing structure to protect the stem under pessure during operation maintenance , no damage to the operator.
