Product Description

[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

一、Technical specification:

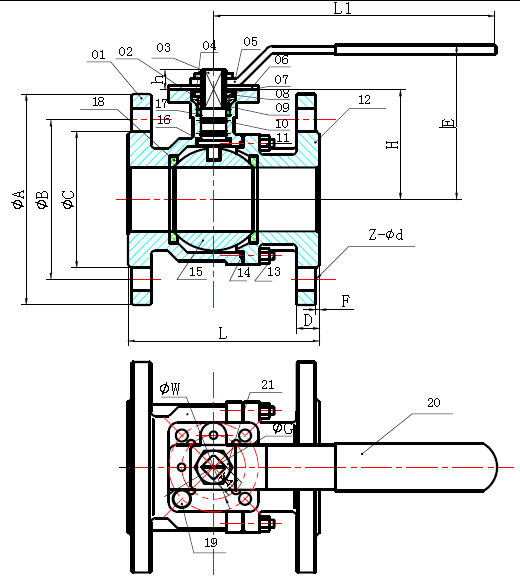

Design:2-PCS flanged ball valve with handle
End connection: flange type
Normal pressure: 1.6Mpa
Temperature range: -20℃ to 125℃.
Design standard: API 6D
Flange standard: PN16 or customer need
Test standard: API 598
Air sealing test 0.5-0.6Mpa
Sheel test: 2.4Mpa
Actuator: Normally operated with handle, it can also be equipped with manually , electrically or pneumatically operated actuator in order to meet defferent applications and control requirements

二、Applicable media: water, steam, oils and corrosive media.

三、Material
Body: Ductile cast iron, cast iron,
Ball: SS 304, SS316,
Stem: SS304
Sealing: PTFE

四、Surface treatment: Epoxy resin coating both inside and outside the body

五、Advantages:
1. No flow loss or flow loss is very very small
2. The medium can be gas

Flanged ball valve
